5.3.2. Forward Modeling

Here, the code h3dtd_v2.exe and the input file h3dtd.inp (see format) are used to forward model TEM data in the case of galvanic sources. The first source is a long wire that runs from (-775,0,0) to (775,0,0). The second source is a long wire the runs from (0,-775,0) to (0,775,0). We are interested in the vertical dB/dt response from each source as a regular grid of locations 25 m above the Earth’s surface. Files relevant to this part of the example are in the sub-folder fwd. For this example, we use the model that was created in the example “create model”. Before running this example, you may want to do the following:

• Download and open the zip folder containing the entire H3DTD v2 example (if not done already)

• Learn how to run code from command line

• Learn the format of the input file

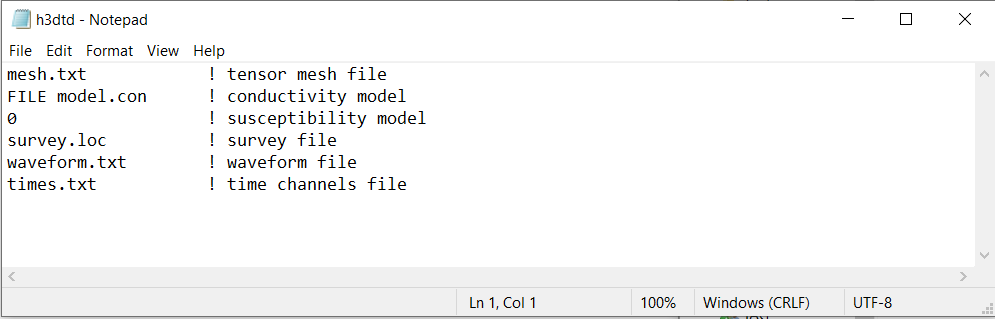

To forward model the data, the following input file was used:

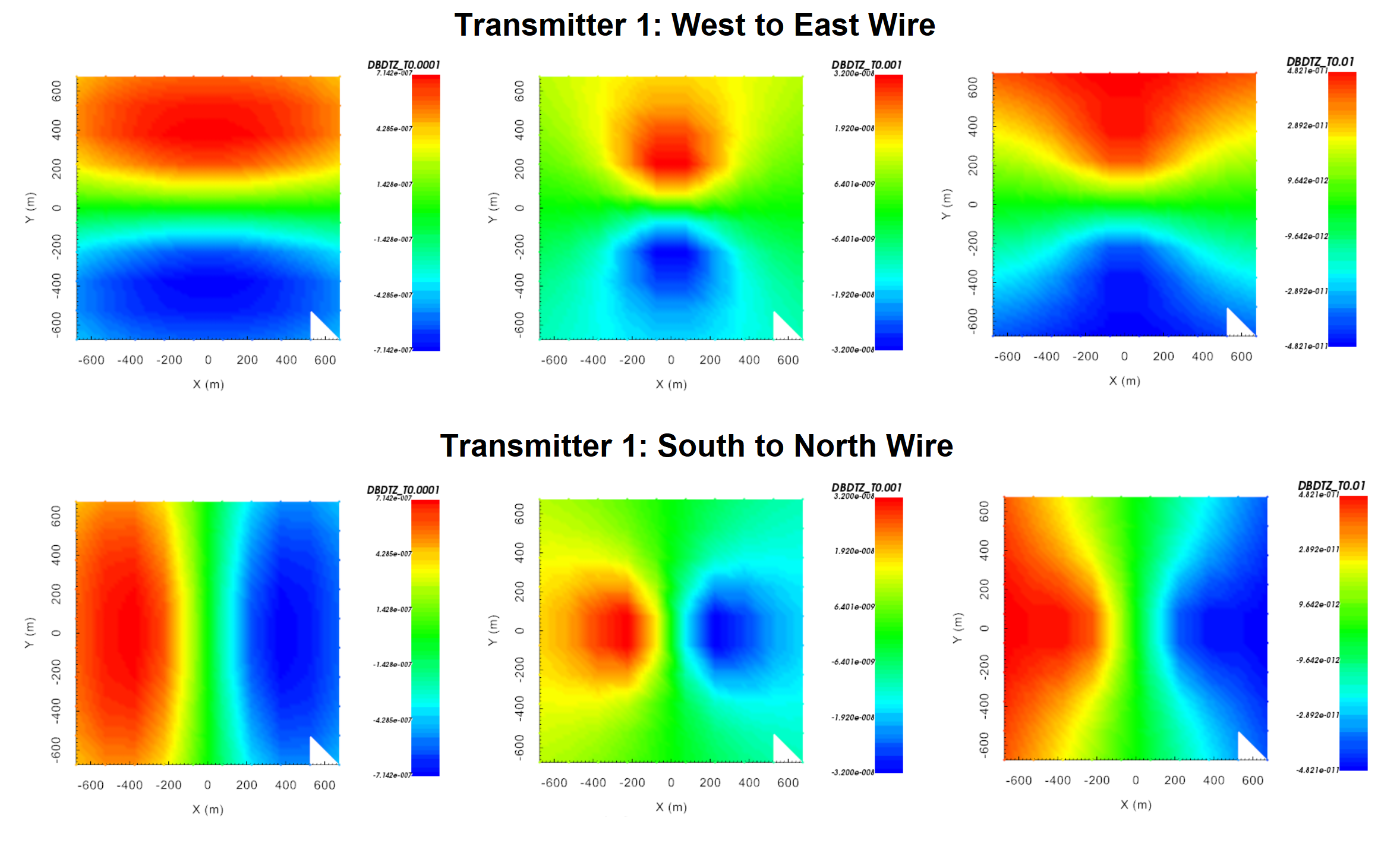

H3DTD v2 forward models the Cartesian components of the electric field, magnetic field and the time derivative of the magnetic flux density. Below, we show dBz/dt at 0.0001 s, 0.001 s and 0.01 due to step-off excitation.
